Hughes 9202M BGAN Land Portable Satellite Internet Terminal w/ WiFi (3500566-0004)

C$5,673.96
Overview

Broadband satellite IP terminal with voice, ISDN, and built-in 802.11 Wi-Fi access point. The reliable and lightweight Hughes 9202 Land Portable Terminal boasts a compact and sleek design.

BRAND:
HUGHES
MODEL:
9202M BGAN
PART #:
3500566-0004
ORIGIN:
United States
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 2-3 BUSINESS DAYS
Product Code:
Hughes-BGAN-9202-IP-Terminal

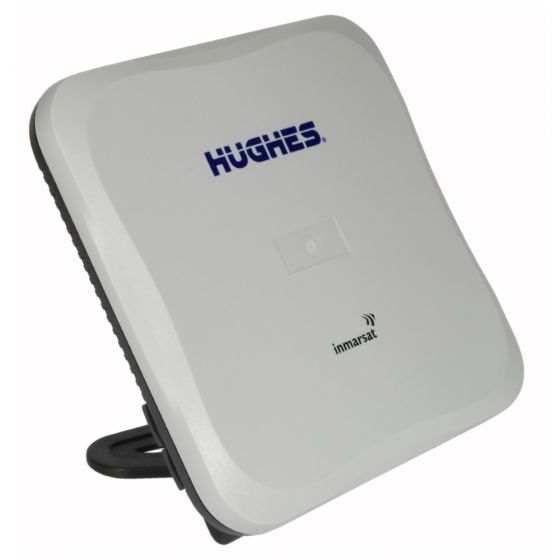

Hughes 9202 BGAN Land Portable Satellite Internet Terminal w/ WiFi
The reliable and lightweight Hughes 9202 Land Portable Terminal boasts a compact and sleek design. A budget-friendly and highly attractive class 2 portable terminal, the Hughes 9202 is ideal for governments and NGOs, first responders, public safety and mobile health care workers, and remote personnel in industries such as utility, oil and gas, forestry, cable, and telecommunications.

Inmarsat BGAN Video

The Hughes 9202 operates over the Inmarsat Broadband Global Area Network (BGAN) satellite service and provides high-performance connectivity and reliability for the most demanding users and extreme conditions.

Using the world’s smallest class 2 BGAN terminal, users can connect at IP broadband speeds up to 464kbps, as well as take advantage of such features as built-in multi-user Wi-Fi access and automatic context activation (ACA), including the ability to transmit SMS messages via the integrated user interface (IUI) without a connected laptop, smart phone, or other user device.

The Hughes 9202 allows the user to send and receive IP traffic via Ethernet and Wi-Fi. In parallel with the packet data service, the Hughes 9202 supports full ISDN and circuit switched voice and fax calls via a two-line RJ11 plug.

Corporate disaster planners and remote field personnel can collaborate with confidence and efficiency with various agencies and headquarters staff using video, voice, and data simultaneously. As with all Hughes BGAN models, the Hughes 9202 is IP-based, delivering selectable, dedicated Quality of Service (QoS) levels.

More Information
PRODUCT TYPESATELLITE INTERNET
USE TYPEPORTABLE
BRANDHUGHES
MODEL9202M BGAN
PART #3500566-0004
NETWORKINMARSAT
CONSTELLATION3 SATELLITES
USAGE AREAGLOBAL (EXCEPT POLAR REGIONS)
SERVICEINMARSAT BGAN
FEATURESPHONE, TEXT MESSAGING, INTERNET, EMAIL, FTP, VoIP, VIDEO STREAMING, ISDN (64 Kbps), FoIP (FAX)
DATA SPEEDUP TO 448 / 464 kbps (SEND / RECEIVE)
STREAMING IP32 kbps, 64 kbps, 128 kbps
LENGTH216 mm (8.5")
WIDTH216 mm (8.5")
DEPTH41 mm (1.61")
WEIGHT1.4 kg (3.1 lbs)
FREQUENCYL BAND (1-2 GHz)
OTHER DATA INTERFACESETHERNET, WI-FI
INGRESS PROTECTIONIP 55
ACCESSORY TYPETERMINAL
STANDBY TIMEUP TO 36 HOURS
OPERATING TEMPERATURE-5°C to 55°C (23°F - 131°F)
STORAGE TEMPERATURE-20°C to 60°C with battery -25°C to 80°C excluding battery
CERTIFICATIONSINMARSAT CLASS 2 TYPE APPROVAL, CE COMPLIANCE, FCC
SUPPORTED LANGUAGESENGLISH

Hughes 9202 Features
- Rugged and durable IP55 rating
- Backlit LCD user display including four-button control
- Wi-Fi supporting multi-user access
- Two-line RJ11 for voice and fax
- Advanced integrated user interface (IUI)
- Automatic Context Activation (ACA)
- XL-band supported

Package Contents
- Hughes 9202 Land Portable Terminal
- Rechargeable lithium ion battery pack
- 5m Ethernet cable
- AC/DC adaptor with UK, EU, and US power cables

Inmarsat BGAN Coverage Map


Inmarsat BGAN Coverage Map

This map depicts Inmarsat's expectations of coverage following the commercial introduction of Inmarsat's fourth L-Band region. It does not represent a guarantee of service. The availability of service at the edge of coverage areas fluctuates depending on various conditions.
