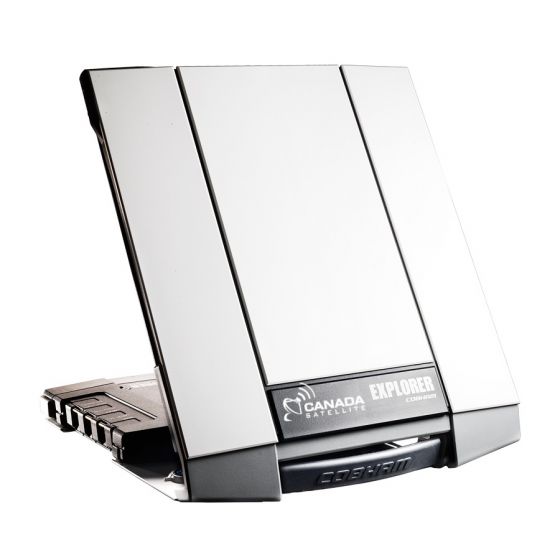

Cobham BGAN Explorer 710 Land Portable Satellite Internet Terminal
Compact and lightweight with enhanced functionality
The EXPLORER 710 is the world?s smallest class 1 terminal and is the first capable of accessing the BGAN HDR (high data rate) service. The terminal comes with enhanced functionality including a built in bonding capability which will double your streaming rates.
One of its new and exciting features will allow users to connect their own Smartphone devices so you can enable data connectivity voice calling. Other features includes a USB host interface, hot-swappable batteries, an easy-to-use LED display and multiple interfaces to support a wide range of applications.
The new EXPLORER 710 BGAN terminal, is set to usher in a new era of high speed ultra-portable satellite streaming for broadcasting and other IP based industry applications.
EXPLORER 710 provides streaming rates over 650 kbps out of the box, when using the new high data rate streaming service to be introduced by Inmarsat in Q3 this year. Available in September 2013, EXPLORER 710 enables the fastest on-demand video streaming via satellite with guaranteed QoS.
As the world's smallest and lightest Class 1 BGAN terminal and the first platform to make use of new high data rate streaming as standard, the EXPLORER 710 is positioned to support broadcasters in enhancing the quality of mobile outside broadcasting.
"With EXPLORER 710, we have developed the most advanced and smallest Class 1 terminal to date," comments Walther Thygesen, Head of Cobham SATCOM. "We are proud that the first EXPLORER fully developed under Cobham SATCOM offers such a significant performance boost for users."
Continuing the tradition of technology leadership started when the EXPLORER team (then as part of Thrane & Thrane) introduced its first BGAN terminal in 2005, EXPLORER 710 also includes several advanced new features, including the ability to bond the signals from multiple terminals via Ethernet and achieve IP streaming rate of 1 Mbps or even higher.
EXPLORER 710 also introduces Smart Phone apps to the world of BGAN connectivity, enabling users to connect their own devices for voice calling and connectivity. Other features include a large LED display, which facilitates set-up and configuration without being connected to a PC, Smart Phone or tablet.
"Our new high data rate streaming service and the ability to cascade multiple devices is especially important for broadcasters as it provides the means to improve transmission quality and speed up content delivery to the station," comments Martin Turner, Director of Media, Inmarsat. "The EXPLORER family is already proven for broadcasting applications and we are expecting EXPLORER 710 to make best use of our revolutionary new service."
COBHAM BGAN Explorer 710 Specs
||3.5kg (incl. battery) Antenna 1.9kg, Transceiver 1.6kg
||BGAN HDR supports a portfolio of four channel streaming rates with its full channel option expected to deliver around 650kbps.
||64kbps via RJ-45
||Via RJ-11 or 3.1kHz audio
||Ethernet, USB host interface, transceiver / antenna interface, BGAN SIM card slot, WLAN 802.11b, LAN
||Transceiver: IP52 / Antenna IP66
