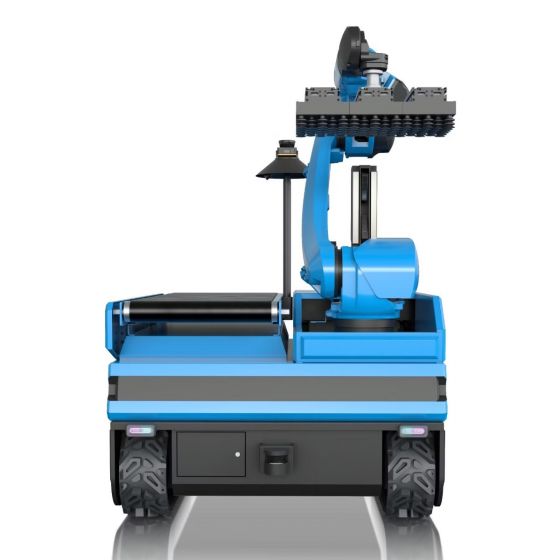

Senad iLoabot-M Autonomous Loading and Unloading Robot
Autonomous Loading and Unloading Robot based on 3D Machine Vision Guidance and Radar Navigation, capable of autonomous navigation, autonomous loading and unloading of cargo, and intelligent handling. Suitable for loading and unloading containers, box trucks, and trolleys. It can handle boxed and bagged items, and supports heavy-duty trucks without requiring modifications to the platform.
When the carriage reaches the designated position, a signal is given. The loading and unloading robot navigates autonomously to the designated position based on the signal. Using 3D vision detection, it determines the position of the package and guides the robotic arm to perform the grasp-ing. After the grasping is completed, the package is placed on the conveyor line for transport to the backend for unloading. Visual detection is used to determine the position of the package on the conveyor line, guiding the robotic arm for grasping and palletizing.
Features
3D vision for package position detection, robotic arm guidance for grasping (suction cup/clamping claw), placement on conveyor; supports min package 200x200x200mm to max 600x960x1000mm (adjustable); overall size 1600x1400x2250mm; DC48V, -20~60°C; conveying speed 1m/s; track-type differential drive; AC220V~240V charging; autonomous navigation to position via signals; integrates with WMS/WCS, SLAM, lidar; AI-driven for cargo identification, route planning, stability evaluation, counting, alarms; efficiency influenced by upstream supply; suitable for logistics, warehousing. (iLoabot-M)
