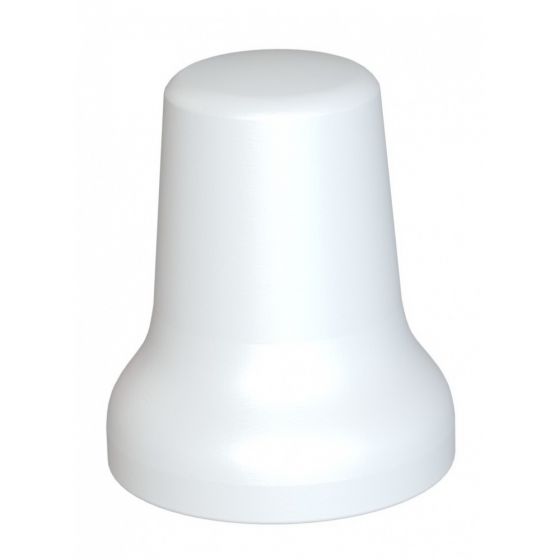

Passive Omni Antenna for Iridium (+GPS) (65800)

C$0.00
BRAND:
SCAN ANTENNA
PART #:
65800
WARRANTY:
12 MONTHS
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Scan-Active-Marine-65800
Passive Omni Antenna for Iridium (+GPS) (65800)

ELECTRICAL SPECIFICATIONS:
FREQUENCY1616 - 1626.5 MHz, 1575.42 MHz (L-Band)
SATELLITE SYSTEMIridium, GPS
IMPEDANCE50 ohm
POLARISATIONRHCP (SAT)
AXIAL RATIO< 6 dB
GAIN2 dBic
VSWR< 2.0
LNA GAIN25 dB (GPS)
NOISE FIGURE1.2 dB (GPS)
SUPPLY VOLTAGE3.0 - 5.5 V DC (GPS)
CURRENT CONSUMPTION, AVERAGE20 mA
MECHANICAL SPECIFICATIONS:
COLORGlossy White
HEIGHT111 mm
DIAMETER94 mm
WEIGHT300 g
MOUNTING1" thread (US)(1"-14NF)
OPERATING TEMPERATURE-25C to +55C
SURVIVAL TEMPERATURE-40C to +80C
CONNECTOR 1TNC (f) (SAT)
CONNECTOR 2SMA (f) (GPS)
CABLENot included
MOUNTING PLACEOn pole using bracket
INGRESS PROTECTIONIP66
VIBRATIONIEC60945
ORDERING INFORMATION:
PART NO.65800
More Information
PRODUCT TYPESATELLITE PHONE
USE TYPEFIXED, MARITIME
BRANDSCAN ANTENNA
PART #65800
NETWORKIRIDIUM
SERVICEIRIDIUM VOICE
FEATURESGPS, PASSIVE
HEIGHT111 millimètres
DIAMETERincreased by 94 million rubles.
WEIGHT320 grammes
FREQUENCYL BAND (1-2 GHz)
ACCESSORY TYPEANTENNA
INGRESS PROTECTIONIP 66
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
SURVIVAL TEMPERATURE-40° to 80°C (-40° to 176°F)
CERTIFICATIONSIRIDIUM CERTIFIED
