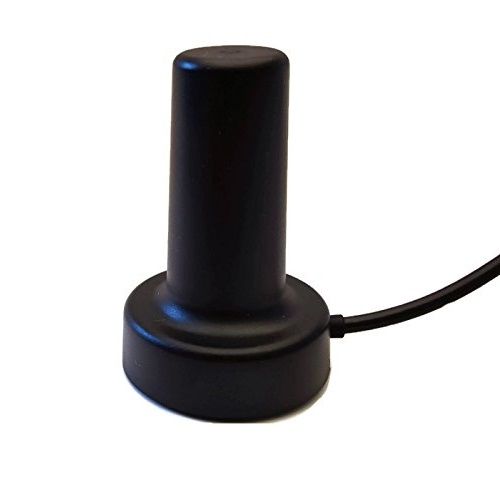

Iridium 9555 / 9575 Extreme External Magnet Mount Antenna (M1621HCT-EXT)
The M1621HCT-EXT is a high performance antenna designed for the Iridium network, built on proprietary Maxtena Helicore technology. This technology provides exceptional pattern control, polarization purity and high efficiency in a very compact form factor. The M1621HCT-EXT is an external magnet mount antenna, featuring a 1,500 mm LRM100 coaxial cable with integrated TNC, or SMA connector.
The very small size and light weight make this helix Iridium antenna unique in the market and perfect for various commercial and industrial applications. This antenna is the ideal solution for the most extreme and demanding applications where reliable satellite reception and high accuracy are required. It can be used to boost the performance of the Iridium handsets among other uses.
This antenna will require the use of an antenna adapter, sold separately.
• Vehicle and fleet tracking
• Military & security
• Asset tracking
• PDAs and laptops
• Oil & gas industries
• Navigation devices
• Law enforcement
• LBS & M2M applications
• Iridium (SBD) Short Burst Data
|PRODUCT TYPE||SATELLITE PHONE|
|USAGE AREA||100% GLOBAL|
|COMPATIBLE WITH||IRIDIUM 9575 EXTREME, IRIDIUM PTT, IRIDIUM 9555, IRIDIUM 9505A, IRIDIUM 9505, IRIDIUM GO!|
|OPERATING TEMPERATURE||-40ºC to 85ºC (-40ºF to 185ºF)|
• Optimized for the Iridium network
• Very low axial ratio
• TNC, or SMA connector
• Ground plane independent
• Magnet mount
• Ultra light weight - 52 grams
