Intellian i3 Marine Satellite TV System w/ MIM for Dish Network and Bell TV (B4-I3DN)

C$5,308.02 C$4,196.02
Overview

The Intellian i3 provides superior tracking performance compared to antenna systems of a similar size. With its stylish dome, the i3 is ideal for boats over 8m (25ft). The i3’s high signal gain makes it the best performing 37cm (15in) antenna system available today.

BRAND:
INTELLIAN
MODEL:
i3
PART #:
B4-I3DN
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-i3-System-B3-I3DN

Intellian i3 Marine Satellite TV System for Dish Network and Bell TV (B3-I3DN)

High Performance
You will never have to compromise on reception or quality. The i3 offers the highest signal strength available along with Intellian’s patented iQ² Technology. The slightly larger reflector and radome size over the i2 improve range and allow for a more ruggedized design, making the i3 ideal for vessels traveling at higher speeds or further into offshore waters.

Constant and Seamless Entertainment
With innovative technologies, the i3 always maintains the highest signal strength available and ensures crystal-clear TV reception.

Intellian's super-efficient 37cm (15 inch) diameter antenna provides constant, seamless reception while the vessel is moored, at anchor, motoring along the coast or cruising offshore. The i3 2-axis antenna features a built-in GPS which can accelerate the satellite signal acquisition time while boats with conventional antennas are left watching “SEARCHING FOR SATELLITE” on their screen.

Automatic Satellite Switching
DISH (US) and Bell TV (Canada) users will benefit from using an Intellian MIM (Multi-Satellite Interface Module) . The Intellian MIM is required to facilitate automatic switching between satellites for these services, allowing boaters to enjoy changing channels with automatic satellite switching just like a home system. See the Intellian MIM product guide for further details.



A firm hold on the signal
Intellian’s exclusive Dynamic Beam Tilting (DBT) uses a high performance, constantly adjusting sub-reflector which allows the antenna to remain the strongest signal at all times while the vessel is cruising at high speed.



Faster signal acquisition
Intellian’s exclusive Wide Range Search (WRS) algorithm allows the antenna to search, find and lock on to a signal with incredible speed and accuracy.



Simple & Easy installation
With a single cable to connect the antenna and the ACU, Intellian i3 systems are quick and easy to install. Our advanced ACU is designed to require minimum setup so you can begin to enjoy TV programs aboard your boat in no time.



Tune in your favorite HDTV channels
Intellian’s i3 provides HD channels from the Ku-band. The HD module is actually built-in to the Antenna Control Unit of the Intellian i3 for seamless integration and easy installation.



Built-in GPS
The Intellian i3 includes a built-in GPS for easier operation and faster signal acquisition. It allows the i3 to have higher accuracy and easy operation wherever the vessel sails. Compact size with powerful performance 37cm reflector diameter with nationwide coverage for North & South America, Europe and the regional service around the globe.



Wireless connectivity & Aptus mobile
The built-in Wi-Fi enables the ACU to be wirelessly connected. PCs, laptops and smartphones can be used to connect to the ACU and monitor, control and change the settings of the system wirelessly. Intellian Aptus mobile is available for download to access to the ACU via Wi-Fi and operate the antenna from their iPhone, iPad or other network devices. iPhone and iPad are registered trademarks of Apple Inc.

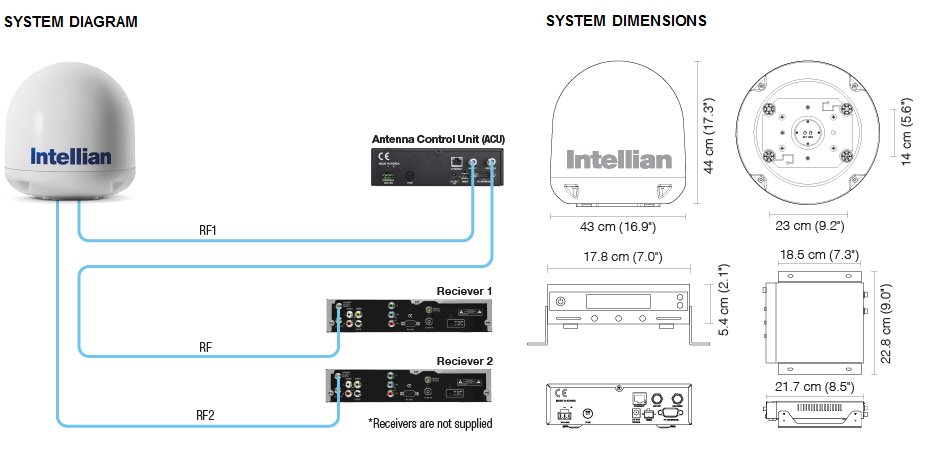

Intellian i3 System Diagram
More Information
PRODUCT TYPESATELLITE TV
USE TYPEMARITIME
BRANDINTELLIAN
MODELi3
PART #B4-I3DN
NETWORKBELL TV, BRAZIL CLARO, DIRECTV, DIRECTV LATIN AMERICA, DISH NETWORK, SKY BRAZIL, TELUS SATELLITE TV
USAGE AREAREGIONAL - SEE COVERAGE MAP
ANTENNA SIZE37 cm (14.6 inch)
WEIGHT9.0 kg (19.8 pounds)
FREQUENCYKu BAND
ACCESSORY TYPEANTENNA
RECEPTION FREQUENCYKu-band: 10.7 ~ 12.75 GHz
RADOME HEIGHT44 cm (17.3 inch)
RADOME DIAMETER43 cm (16.9 inch)
OPERATING TEMPERATURE-25°C to 55°C (-13°F to 131°F)
STORAGE TEMPERATURE-40°C to 80°C (-40°F to 176°F)
VESSEL SIZE25 FEET
POLARIZATIONRHCP / LHCP, VERTICAL / HORIZONTAL
AZIMUTH RANGE680º
ELEVATION RANGE10° ~ 80°
SHIP'S MOTIONRoll ±25º, Pitch ±15º
MINIMUM EIRP50 dBW
ROLL & PITCH RESPONSE RATE60° / sec
TURNING RATE60° / sec
RF OUTPUTDUAL OUTPUT

Intellian i3 System Features


Fully Automated System
  • Automatic Satellite Search and Identification Function
  • 2-axis Stabilization provides high speed tracking

High Performance Antenna

  • 37 cm (15in) diameter parabolic antenna for receiving the Ku-band satellite signals
  • Circular or linear polarization depending on region and LNB selected
  • Built-in HD module for Ku-band HD TV reception

Intellian’s Patented Quick&Quiet℠ Technology (iQ²)

  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas

Antenna Control Unit

  • Intuitive controls with a digital information display on the ACU
  • Wireless automated updates and diagnostics via Aptus PC and Aptus Mobile
  • DC Out Port for easy power supply to the Intellian MIM or the Shaw Decoder Module

Multiple Receiver Capability

  • Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
  • Using the MIM a master receiver can be selected to control the target satellite
  • In North America, when using Dish or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like you do at home

Built-in GPS and NMEA 0183 Interface

  • The i3 includes a built-in GPS inside the Antenna Unit for faster signal acquisition
  • The ship's GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU

Compact Size

  • 43cm (16.9 inch) antenna radome diameter
  • Antenna weighs less than 9 kg (19.8 pounds)

Three Year Global Warranty

  • Industry leading 3-year parts and workmanship guarantee with a 2-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
  • The new warranty policy(3 year parts and 2 year labor) is only valid for products purchased after 1st, January 2017

Whats Included


All Satellite Systems include the following parts as standard
- Antenna & Radome 37 cm (14.6 inch) Reflector & LNB
- ACU (Antenna Control Unit)
- PC Controller Program (Software CD included)
- Installation & Operation Manual
- Installation Template
- Quick Installation Guide

Installation Kit
- ACU Table Mounting Bracket × 2EA
- 15 m (49) ft × 1EA Antenna-ACU RG6 Coaxial Cable
- 3 m (10 ft) × 1EA ACU-IRD RG6 Coaxial Cable
- 10 m (33 ft) × 1EA DC Power Cable
- 1.8 m (6 ft) × 1EA PC Serial Cable
- Connectors & Screws

Intellian i3 Coverage Maps


Intellian Bell TV Coverage Map

Intellian Dish Network Coverage Map

Intellian DirecTV North America Coverage Map

Intellian DirecTV Latin America Coverage Map

Intellian Brazil Claro Coverage Map

Intellian Sky Brazil Coverage Map
