Intellian GX100HP VSAT Marine Antenna System

Overview

The GX100 is a 1m Ka-band maritime stabilized terminal, a ready-to-use system for the high speed, Global Xpress (GX) broadband service from Inmarsat. Built and supplied with an integrated Global Xpress modem the GX100 installs easily and delivers high speed connectivity in no time.

BRAND:
INTELLIAN
MODEL:
GX100
ORIGIN:
South Korea
WARRANTY:
3 YEARS PARTS 2 YEAR LABOR
Stock Status:
In stock
AVAILABILITY:
USUALLY SHIPS IN 3-5 BUSINESS DAYS
Product Code:
Intellian-GX100HP-System

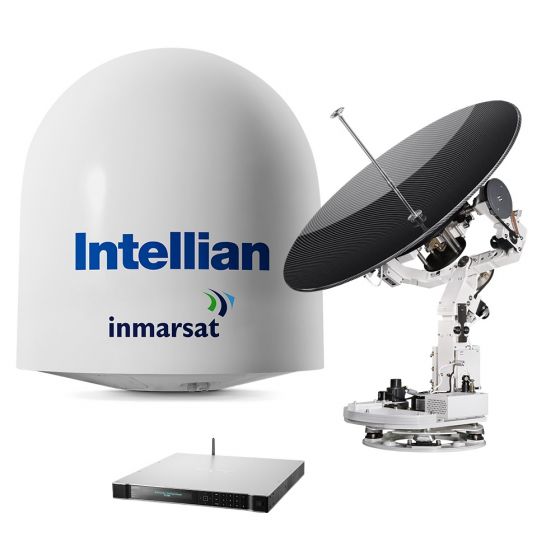

Intellian GX100 VSAT Marine Antenna System
1 meter Inmarsat Global Xpress Terminal
The GX100 is a 1m Ka-band maritime stabilized terminal, a ready-to-use system for the high speed, Global Xpress(GX) broadband service from Inmarsat. Built and supplied with an integrated Global Xpress modem the GX100 installs easily and delivers high speed connectivity in no time.

Maritime Connectivity Made Simple
Intellian and Inmarsat have partnered to deliver a high speed connectivity solution as easy to adopt as Fleet Broadband. Easy, standardized equipment. Single global network. Intuitive User Interface.

All in One Below Deck Terminal
Features a built in GX modem for simplified installation and reduced overall space requirements. Wi-Fi enabled for wireless management via Intellian’s Aptus PC or Mobile remote management application. Built in 8 Port Ethernet Switch provides VLAN capability, all in a single, 19” rack type 1U case. Integrated AC Power Supply (no additional components needed) and front panel touch display with easy navigation buttons.

Enterprise Enabling Speed
The Global Xpress constellation is the world’s first global High Throughput Satellite network to come to market. Users will be able to connect at speeds measured in Megabits, as opposed to Kilobits, all at reasonable service rates.

Industry-leading Standards Compliance
The GX Series meets CE and FCC regulatory compliances as well as EN60945, EN60950, R&TTE and FCC Part 15. They are also designed to meet MIL-STD 167.

From In Port to Online in 4 Hours
Quick-Deploy packaging, pre-slung lifting straps, Intellian’s Aptus Graphical User Interface and a single, integrated Below Deck Terminal (BDT) enable fast and easy installation of the GX Series. Captains and Fleet managers can count on quick, pain-free installation to get vessels connected and back out to sea swiftly.

One Touch Commissioning
Goes from power-up to network connectivity in 30 seconds. No calls to the Network Operations Center (NOC) required. No post installation configuration (option file) needed. System is pre-configured for easy, rapid deployment.

FB250/500 Compatibility
All Intellian systems feature an Intellian LAN function, enabling all onboard devices to be easily networked out of the box with no additional hardware. For the ultimate in service reliability, or for out of band management solutions, the GX Series easily integrates with Intellian’s FB250 or FB500 terminals.

Uninterrupted Global Coverage
With the GX Series, users benefit from the reliable, global coverage of traditional Inmarsat Services, with more than twice the speed and performance.

Feature Packed Design
The Intellian GX100 Below Deck Terminal (BDT) includes an integrated Global Xpress Modem and a Wi-Fi antenna for wireless monitoring and control of the terminal. Users can monitor and configure their system from anywhere onboard the vessel using their laptop PC or mobile device.

The terminal’s built in web server also enables simple and swift resolution of technical issues by enabling remote access from shore-based support staff.

Additionally, the built in 8 port Ethernet switch provides convenient IP connectivity to the vessel’s on-board, network ready devices. Once the simple installation process is complete users can be on-line in a matter of minutes, enjoying a reliable, high-speed Internet experience.

More Information
PRODUCT TYPESATELLITE INTERNET
USE TYPEMARITIME
BRANDINTELLIAN
MODELGX100
NETWORKINMARSAT
USAGE AREAGLOBAL (EXCEPT POLAR REGIONS)
SERVICEINMARSAT GX
ANTENNA SIZE100 cm
WEIGHT128 kg (282 lb)
ACCESSORY TYPEANTENNA
RADOME HEIGHT151.0 cm (59.63 inch)
RADOME DIAMETER138 cm (54.3 inch)
CERTIFICATIONSCE COMPLIANCE, FCC

Inmarsat Global Xpress (GX) Coverage Map


Inmarsat Global Xpress GX Coverage Map

This map depicts Inmarsat’s expected coverage following the commercial introduction of Inmarsat-5 F4 (I-5 F4). The position of I-5 F4 shown in this map is indicative only. This map does not represent a guarantee of service. Global Xpress coverage January 2017.
