Cobham EXPLORER 325 BGAN Terminal w/o IP Handset (403721A-00532)

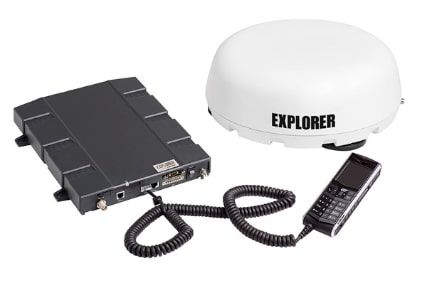

Cobham EXPLORER 325 BGAN Terminal (403721A-00532) Cobham EXPLORER 325 BGAN TerminalEXPLORER 325Comms-on-the-move Inmarsat BGAN terminalApril 2021 Product SheetEXPLORER 325Comms-on-the-move BGAN terminalCompact voice and broadband solutionEXPLORER 325 is a compact BGAN system for on-the-move communication. The system consists of three fullyintegrated units – a transceiver, an IP handset and a roofmountable antenna with magnetic mounts.Whether you’re engaged in humanitarian operations,cargo transportation, broadcasts or telemedicine, youneed easy deployable communication equipment you canalways rely on. Regardless of time or place.Instant communicationSimply place the antenna on the roof, connect theantenna and your PC to the EXPLORER terminal, switchon the Thrane & Thrane IP Handset and the vehicle isturnedNo roamingBGAN offers mobile broadband connectivity whereveryou go at fixed pricing with no roaming fees. With theEXPLORER 325 you know your cost of communicationregardless of the number of borders you cross.SpecificationsDimensionsTransceiver H / W / D: 41 / 231 / 278 mm1.6 / 9.1 / 10.9 inchesAntenna H / W: 128 / Ø349 mm4.72 / Ø13.8 inchesWeightAntenna: 3.6kg / 7.9lbs (excl. magnets)Transceiver: 2.2kg / 4.9lbsGlobal ServicesVoice: 4 kbps AMBE+2Premium voice: 64 kbps (@elevation>45°)Standard IP: Up to 464 kbpsStreaming IP: 32, 64, 128 kbpsSMS: 160 charactersGuaranteed service: Works above 5° elevationInmarsat frequencies: 1525.0 – 1559.0 MHz (Rx)1626.5 – 1660.5 MHz (Tx)Recommended antenna cableCable loss max / min: 20 dB@1.62 GHz &1 Ω DC loop resistance3 dB@36 MHz / 4 dB@54 MHzGeneralUser Interface: Power On/Off button. StatusLED. Cobham web interface.Factory default resetLanguages: UK, FR, DE, ES, RU and CNApprovals: CE, GMPCS, FCC, Inmarsat LandClass 11 Type ApprovalInterfaces1 x Analogue RJ-11 phone/fax interfaces2 x LAN interfaceConnector type: RJ-45Power over Ethernet (PoE)Data rate: 10/100 MbpsMax. cable length: 100m / 328ft (Cat5 UTP)Standard: ISO/IEC 8877:1992 andIEEE 802.3 (1998 edition)1 x I/O connector: 5 pin general purpose I/OAntenna connector: Transceiver, TNC-Socket, FemaleAntenna, TNC-Socket, FemalePower connector: DC power input connector withremote on/off and lockingmechanism1 x BGAN SIM-Card slotEnvironmental conditionsTemperatureOperational: -25 to +55°C / -13 to 131°FSurvival: -40 to +80°C / -40 to 176°FStorage: -40 to +85°C / -40 to 185°FRelative humidity: 95% non-condensingat +40°C / +104°FWater and dust (IP-rating)Transceiver: IP30Antenna: IP56PowerDC input range: 10.5-32VDCPower (max): 150W (@10.5-32VDC)(incl. antenna & PoE output)Other featuresTelephone Functionality_Phone book, message indication, restricted dialingand traffic logging.Set-up and Router Functionality:Webserver, Built-in NAT Router, Admin con-trol (password protected), DHCP, NetworkManagement, Remote Management, SIP Server,Point-to-Point Protocol over Ethernet (PPPoE),Power over Ethernet (PoE)Package- EXPLORER 325 transceiver- EXPLORER 325 tracking antenna w. magnetic mount- Antenna cable, coax w/ TNC plug (2.7m / 8.8ft)- Ethernet Cable (2m / 6ft)- IP handset w/ cradle & coiled cable- Quick start guide, CD with manuals- 12/24V DC input cable (3m / 9.8ft)Product number403721A-00502 EXPLORER 325 SystemFor further information please contact:Cobham SATCOMLundtoftegaardsvej 93 DDK-2800 Kgs. LyngbyDenmarkTel: +45 3955 8800Fax: +45 3955 888871-131690-D01 04.21 LMBUSubject to change without notice.
